How to filter data points

There are four ways to filter your data while exploring:

1. By tags
2. By time
3. By coordinates
4. By acoustic values

tip

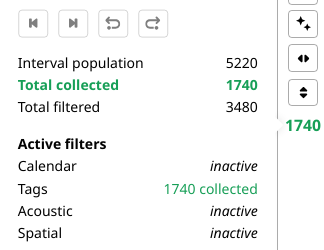

Often, you will find a bold green number in visualisation panel sidebars.

Hover it to display a tooltip allowing you to check filtering state at a glance.

Clicking on that number will cycle its display between collected (visible) and filtered (hidden) audio intervals.

Tag filtering

• Open the Tags panel
• Adjust panel size with sidebar buttons (1)
• Expand and collapse by clicking on tag names (2)
• Select tag value combinations you want to include (3)
• Run quick state actions for each tag (4)

tip

Tag filtering is also available via the Heatmaps panel.

Click on a heatmap square to trigger a toggle shortcut to the associated tag values.

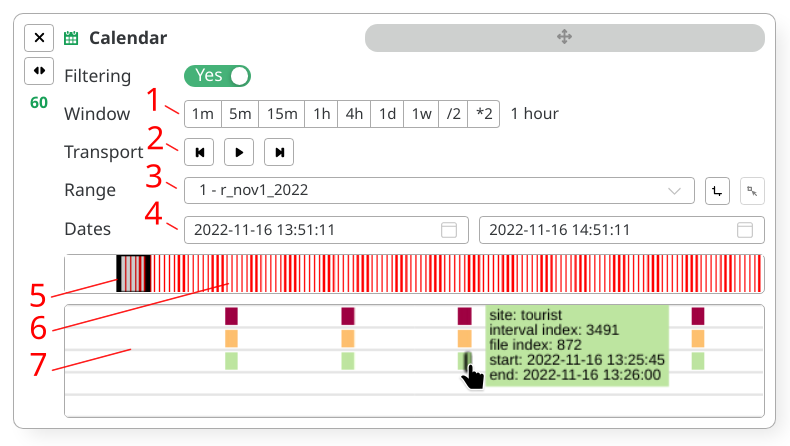

Calendar filtering

• Open the Calendar panel
• Adjust window size
  • Using presets (1)
  • Or manually (5)
• Transport window (2)
• Select range
  • Using range defined during Campaign configuration (3)
  • Or by manually entering dates (4)

Calendar view has 2 sections:

• The track displaying the selected range (6) and the window position (5)
  • Each red line indicates interval presence
• The actual window content (7)

tip

Window content displays intervals across sites. One site per row.

Clicking intervals trigger the Audio player, as if you clicked on their scatter representations.

warning

Color coding in calendar window content has no relationship to actual scatter coloring.

Spatial filtering

hello

Acoustics filtering

hello
